SUKU Decoiler Cum Straightener
The SUKU Decoiler Cum Straightener is designed for precision, durability, and space efficiency.
It combines the functionality of both decoiling and straightening into one compact system,
making it ideal for sheet metal, stamping, and coil processing industries. SUKU’s innovative engineering ensures
maximum productivity, accuracy, and smooth feeding of materials in your production line.
Why Choose SUKU Decoiler Cum Straightener?
- Integrated uncoiler and straightener design saves space and increases efficiency.
- Equipped with hardened, chrome-plated rolls made from bearing steel for extended life.
- Electromagnetic components and frequency-controlled drives ensure smooth, high-speed operation.
- Ideal for different coil materials — steel, aluminum, brass, and copper.
- Built with SUKU’s precision engineering and tested for consistent performance under heavy loads.

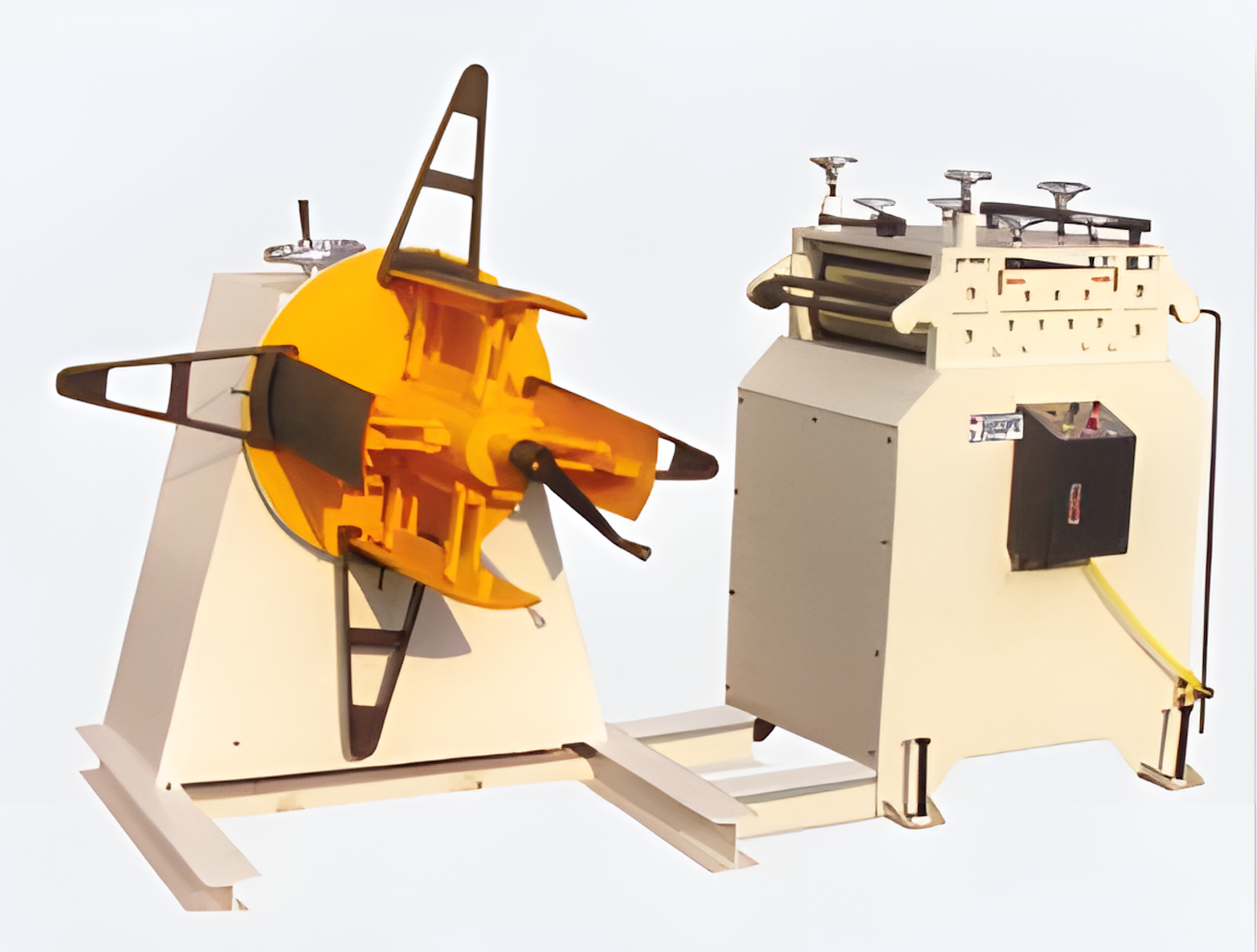

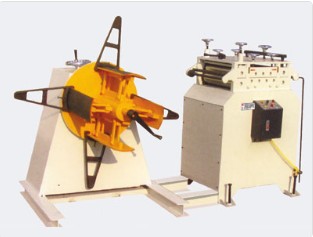

ML-Series
Specifications
| Type |
ML-150 |
ML-200 |
ML-300 |
ML-400 |
ML-500 |
ML-600 |
| Max. Material Width (mm) |
150 |
200 |
300 |
400 |
500 |
600 |
| Material Thickness (mm) |
0.5~3 |
| Reducer |
1/30 |
| HP Motor |
1 | 1 | 2 | 2 | 2 | 2 |
| Pinching Roller |
60x2 80x2 | 60x2 80x2 | 60x2 80x2 |
70x2 98x2 | 70x2 98x2 | 70x2 98x2 |
| Material I.Dia (mm) | 450~530 |
| Material O.Dia (mm) | 1200 |
| Max. Material Weight (kg) |
800 | 800 | 800 | 1200 | 2000 | 2500 |

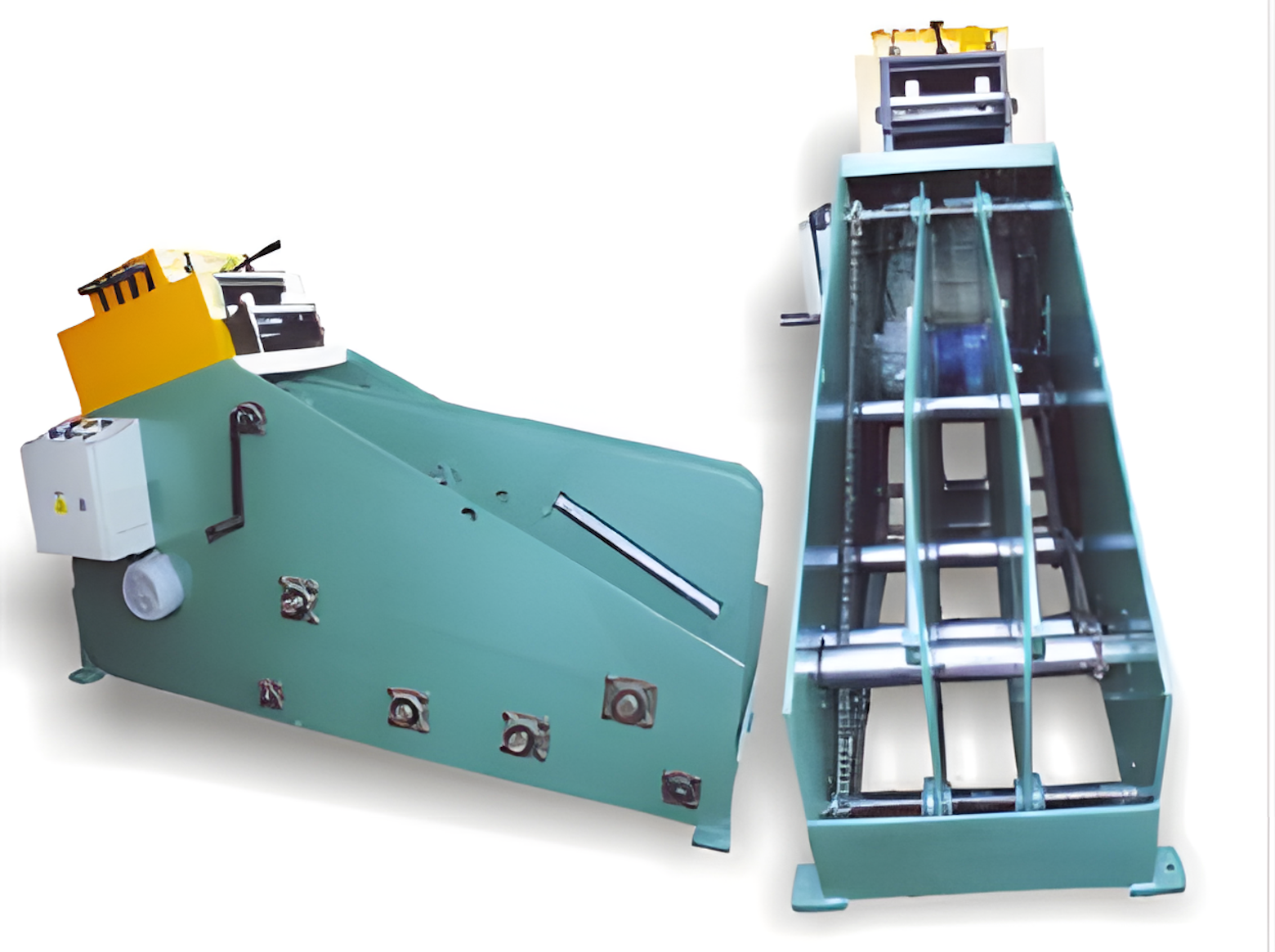

Cradle Type
| CCS Model |
Width (mm) |
Thick (mm) |
Coil Weight |
| SUKU-(200x32) | 200 | 0.35 – 1.5 | 1000kg |
| SUKU-(300x32) | 300 | 0.35 – 1.5 | 1000kg |
| SUKU-(400x32) | 400 | 0.35 – 1.5 | 1000kg |
| SUKU-(500x32) | 500 | 0.35 – 1.5 | 1000kg |
| SUKU-(200x60) | 200 | 1.0 – 2.5 | 1000kg |
| SUKU-(300x60) | 300 | 1.0 – 2.5 | 1000kg |
| SUKU-(400x60) | 400 | 1.0 – 2.5 | 1000kg |
| SUKU-(500x60) | 500 | 1.0 – 2.5 | 1000kg |
| SUKU-(200x80) | 200 | 1.0 – 4.5 | 2500kg |
| SUKU-(300x80) | 300 | 1.0 – 4.5 | 2500kg |
| SUKU-(400x80) | 400 | 1.0 – 4.5 | 2500kg |
| SUKU-(500x80) | 500 | 1.0 – 4.5 | 2500kg |

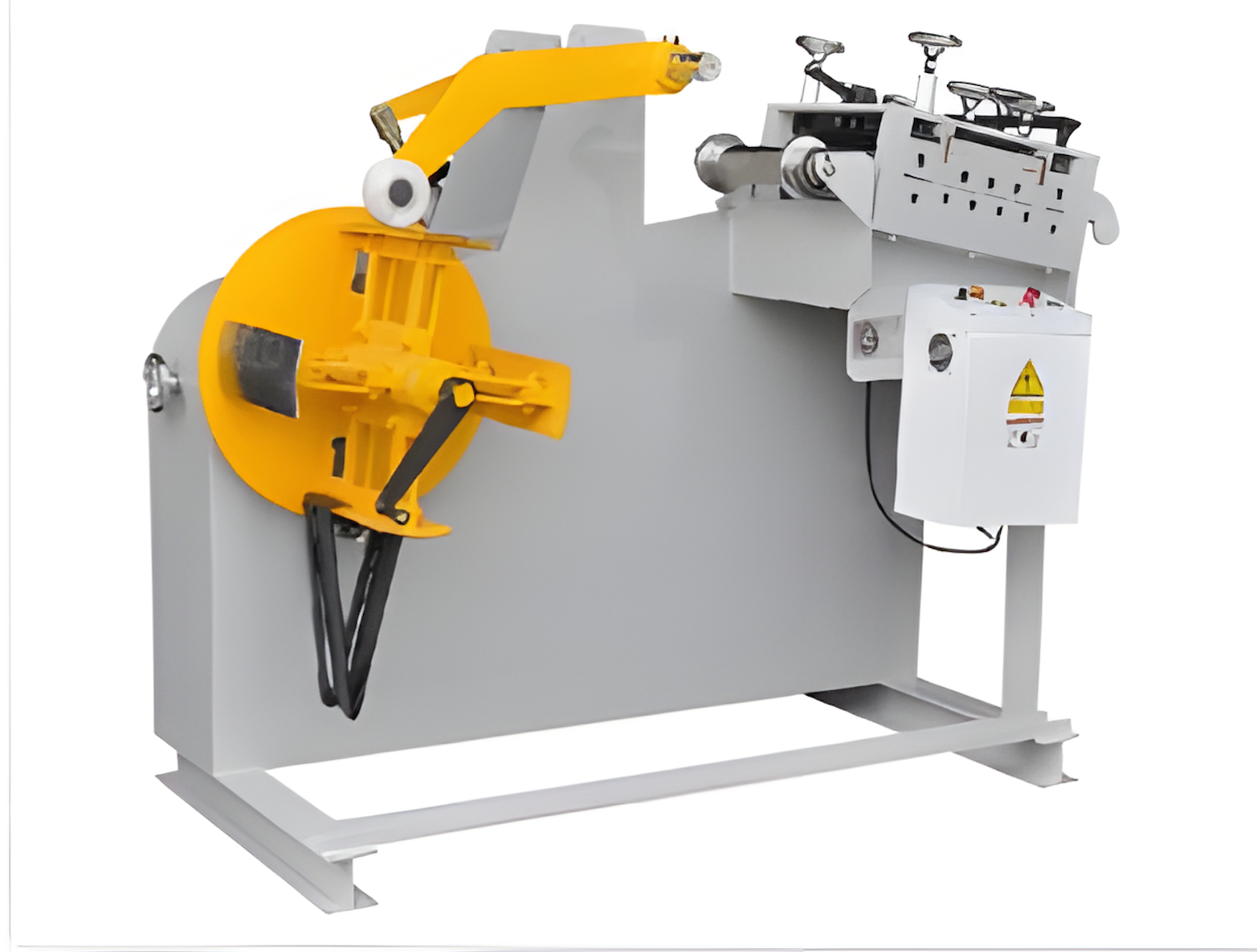

GO Type | Decoiler Cum Straightener
- Integrated uncoiler and straightener with auto feed adjustment.
- High hardness rolls (HRC60) made of quenched and chrome-plated bearing steel.
- Variable speed control with frequency converters for stable operation.
- Inclined leveler reduces loop distance for smooth feeding.
- Durable design with long-life electrical components for continuous operation.
Specifications
| GO Model |
Width (mm) |
Thick (mm) |
Material I.D |
Material O.D |
Material Weight |
Speed of Feed (Meter / Min) |
Coil Expansion |
| SUKU-(200x32) |
200 |
0.35 - 1.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(300 x32) |
300 |
0.35 - 1.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(400 x32) |
400 |
0.35 - 1.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(500 x32) |
500 |
0.35 - 1.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(200x60) |
200 |
1.0 - 2.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(300x60) |
300 |
1.0 - 2.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(400x60) |
400 |
1.0 - 2.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(500x60) |
500 |
1.0 - 2.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(200x80) |
200 |
1.0 - 4.5 |
450-530 |
1200 |
2500kg |
15 |
Manual |
| SUKU-(300x80) |
300 |
1.0 - 4.5 |
450-530 |
1200 |
2500kg |
15 |
Manual |
| SUKU-(400x80) |
400 |
1.0 - 4.5 |
450-530 |
1200 |
2500kg |
15 |
Manual |
| SUKU-(500x80) |
500 |
1.0 - 4.5 |
450-530 |
1200 |
2500kg |
15 |
Manual |

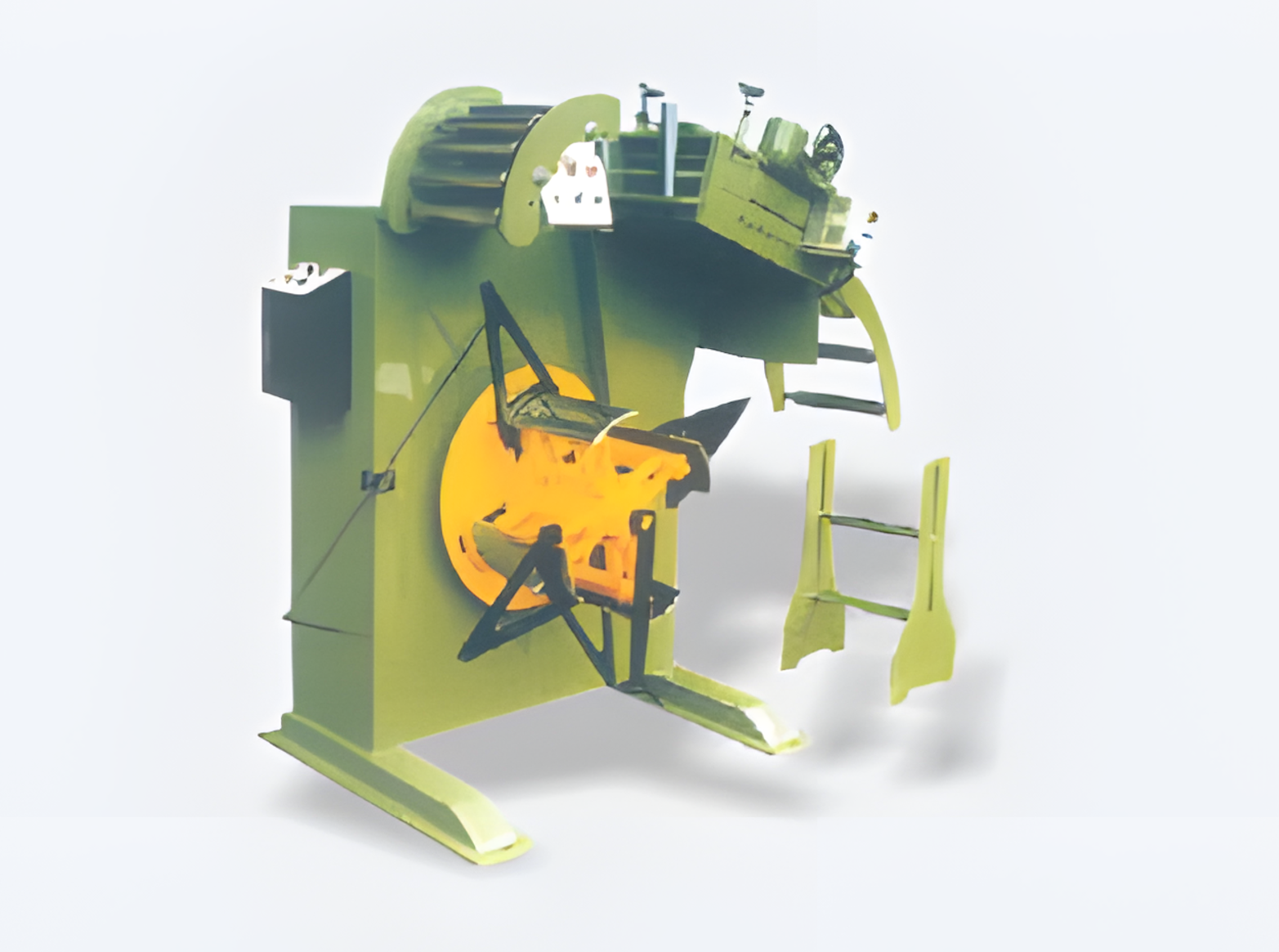

GOS Type | Decoiler Cum Straightener
- Advanced uncoiler and straightener combination for optimized coil processing.
- Frequency-controlled speed drive for consistent performance.
- Inclined leveling mechanism minimizes feeding distance.
- Strong structure designed for heavy-duty industrial use.
- Automation-ready with optional control system upgrades.
Specifications
| GO Model |
Width (mm) |
Thick (mm) |
Material I.D |
Material O.D |
Material Weight |
Speed of Feed (Meter / Min) |
Coil Expansion |
| SUKU-(200x32) |
200 |
0.35 - 1.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(300 x32) |
300 |
0.35 - 1.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(400 x32) |
400 |
0.35 - 1.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(500 x32) |
500 |
0.35 - 1.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(200x60) |
200 |
1.0 - 2.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(300x60) |
300 |
1.0 - 2.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(400x60) |
400 |
1.0 - 2.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(500x60) |
500 |
1.0 - 2.5 |
450-530 |
1200 |
1000kg |
15 |
Manual |
| SUKU-(200x80) |
200 |
1.0 - 4.5 |
450-530 |
1200 |
2500kg |
15 |
Manual |
| SUKU-(300x80) |
300 |
1.0 - 4.5 |
450-530 |
1200 |
2500kg |
15 |
Manual |
| SUKU-(400x80) |
400 |
1.0 - 4.5 |
450-530 |
1200 |
2500kg |
15 |
Manual |
| SUKU-(500x80) |
500 |
1.0 - 4.5 |
450-530 |
1200 |
2500kg |
15 |
Manual |
Applications
- Automotive component manufacturing
- Metal stamping and pressing lines
- Electrical and electronic enclosure production
- Appliance and hardware industries
- Sheet metal processing and forming lines
SUKU Machines ensures reliable performance, precise coil handling, and robust design — making
the Decoiler Cum Straightener the perfect choice for modern, high-precision production environments.
