Zigzag NC servo Feeder is designed to for circle blanking line, with high efficient processing and save material utilization function. It can be suitable for all kinds of circle, round cover and washer stamping. Zigzag NC servo feeder production line is suitable for motor blanking, motor compressor shell, aluminum wafer, kitchen appliances, lighting products, auto parts, stainless steel products and other industries. The Zig Zag NC Servo Feeder is a high-performance coil feeding solution designed for precision stamping, press lines and high-speed automated production. Combining advanced servo control, encoder feedback and robust mechanical design, the ZigZag NC Servo Feeder delivers micron-level accuracy, repeatable feed length and reliable operation for steel, stainless steel, aluminum and non-ferrous materials.
The zigzag servo feeder machine is a highly efficient and advanced feeding system that is designed to meet the demands of modern metalworking processes. It boasts a range of features that make it highly effective at processing a wide range of metals and materials, including coil materials.
The machine is operator-friendly, thanks to its easy-to-use control system, which automatically calculates and sets up all the machine parameters quickly and accurately. The control also automatically calculates the optimum movement in each axis, providing fast and easy setup in a single or dual-axis format.
Overall, the zigzag servo feeder machine is a highly efficient and reliable feeding system that offers significant productivity advantages in stagger feeding. It is a perfect solution for modern metalworking processes that require high accuracy, efficiency, and material savings.

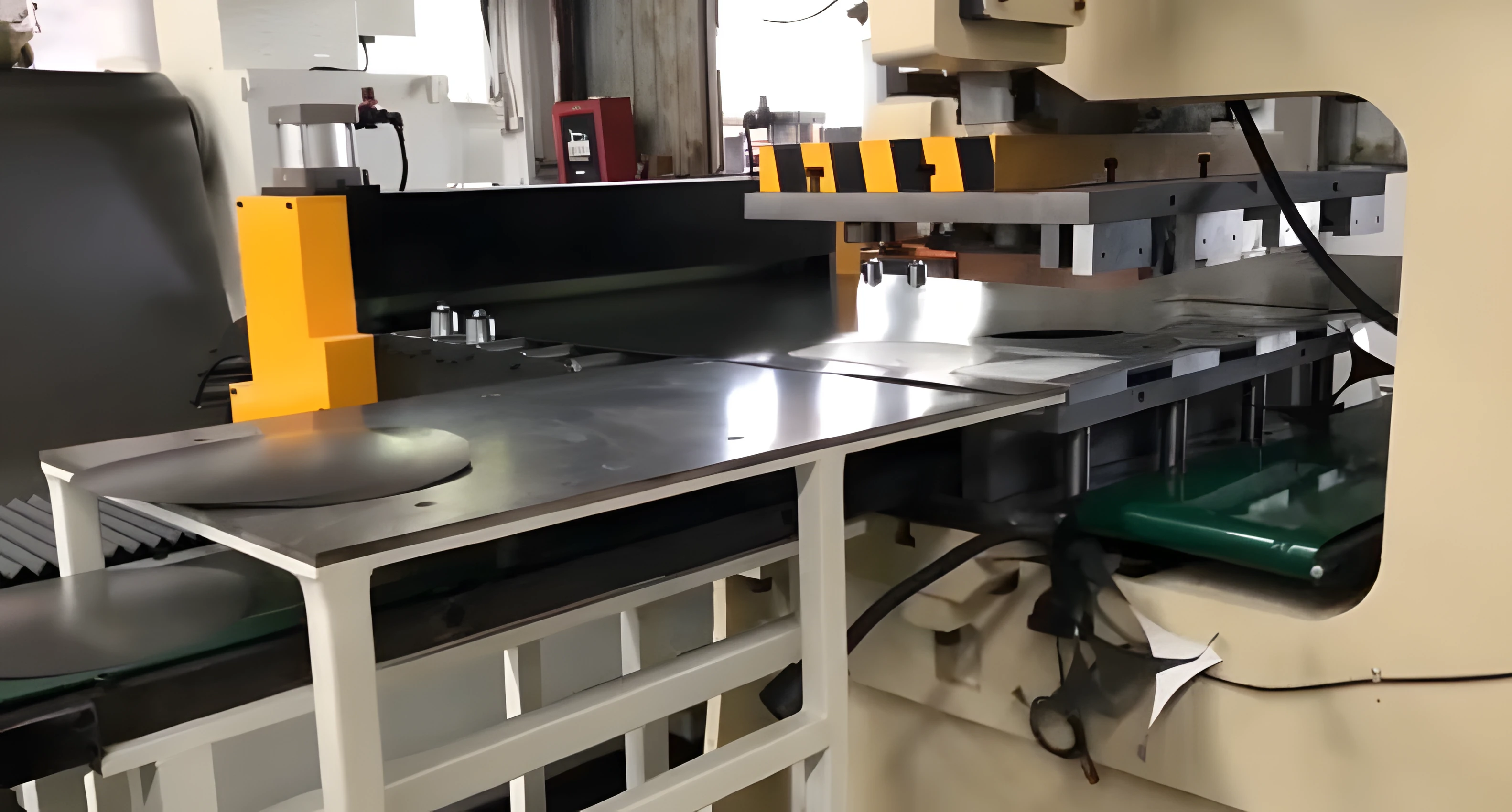

Watch the Zig Zag servofeeder in operation and learn more about its features, performance and applications.
Zig Zag ServoFeeder are engineered for manufacturers who demand precise material positioning, low scrap rates and higher throughput. zig zag nc servo feeders are designed to integrate seamlessly with decoilers, straighteners and press feeders to form a complete coil-to-press automation line.
| Model | NCZAF-200, NCZRF-400 | NCZAF-400, NCZRF-800 | NCZAF-500, NCZRF-1000 | NCZAF-600, NCZRF-1200 | NCZAF-800, NCZRF-1600 | NCZAF-1000, NCZRF-2000 | NCZAF-1300, NCZRF-2600 | NCZAF-1500, NCZRF-3000 |
| Material width (mm)(Max) | 200 | 400 | 500 | 600 | 800 | 1000 | 1300 | 1500 |
| Material Thickness (mm)(Max) - NCZAF | 1.5×200 3.2×100 | 1.5×400 3.2×200 | 1.5×500 3.2×250 | 1.5×600 3.2×300 | 1.5×800 3.2×400 | 1.5×1000 3.2×500 | 1.5×1300 3.2×650 | 1.5×1500 3.2×750 |
| Material Thickness (mm)(Max) - NCZRF | 2.0×200 3.2×100 | 2.0×400 3.2×200 | 2.0×500 3.2×300 | 2.0×600 3.2×400 | 2.0×800 3.2×500 | 2.0×1000 3.2×600 | 2.0×1300 3.2×800 | 2.0×1500 3.2×900 |
| Offset width (mm)(Max) - NCZAF | 200 | 400 | 500 | 600 | 800 | 1000 | 1300 | 1500 |
| Feed Length (mm)(Max) - NCZRF | 200 | 400 | 500 | 600 | 800 | 800 | 800 | 800 |
| Feed Length (mm)(Max) | 9999.99 | |||||||
| Feed Speed (mm)(Max) - NCZAF | 15 | |||||||
| Feed Speed (mm)(Max) - NCZRF | 30 | |||||||
| Power Supply | 415V 3phase | |||||||
| Release Equipment | Pneumatic | |||||||
SUKU offers turnkey: decoiler → straightener → NC servo feeder → press. We also provide custom servo tuning, PLC/NC , and retrofit solutions for existing lines. Contact us for application-specific recommendations, cycle-time studies, and ROI analysis.
Whether you operate a high-volume press shop in the automotive belt of Chennai, an electronics stamping unit in Bengaluru, or a heavy engineering facility in Ahmedabad, SUKU Zig Zag ServoFeeder are built to thrive in Indian factory conditions.
SUKU is major manufacturer and Supplier of Zig Zag Servofeeder to industries all over India since 1992. We proudly serve industries across India, with a strong presence in prominent industrial hubs and locations including :
SUKU supplies spare parts, preventive maintenance plans and on-site commissioning to ensure optimal feeder performance.
